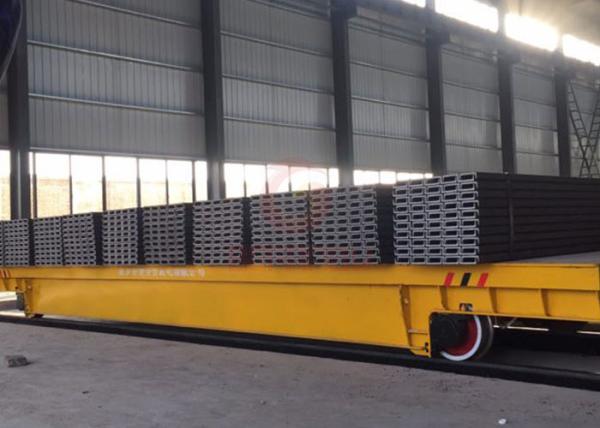

60t Rail motorized transfer trolley for industrial equipment handling
Motorized transfer trolley brief Introduction
This kind of motorized transfer trolley is powered by the low voltage from the railways. The power source AC380V-440v is transformed into AC 36V two-phase and are respectively connected to the two rails. Then the transfer trolley's wheels conduct the AC36V on rail into the electrical appliance box at the bottom of the carts. The AC 36V is transformed into DC 36V and then control the DC motor, gear reducer and wheels through the DC control system to make the flat carts start, stop, go forward, backward, adjust speed perfectly and so on. .
Technical parameters of motorized transfer trolley
| Load capacity | 1-300t, can be customized as per client demand |
| Table size(mm) | standard size: 5000*2500*800mm, customized according to client need |
| Power supply mode | Cable drum |
| Power voltage | 380-440v |
| Speed | 20m/min |
| Wheel dia | 500 |
| Wheel quantity | 4 |
| Rail type | P38 or 40 square bar |
| Transporting cargo | workpiece |
| Application | assembly line |
Main parts of powered transfer trolley
cart frame, cart wheels, DC motor, speed reducer, step-down transformer, commutator, ground control cabinet, electrical control box, hand-held pendant, remote controller, alarm lamp.
Technology description of motorized transfer trolley
| Transfer trolley's traveling speed is 20m/min |
| The rail trailer adopts DC motor |
| The speed reducer brand: |
| Transformer has short -circuit protection |
Application of motorized transfer trolley
It can applied in the following fields: heavy machinery, shipyard, mold steel, foundry plant, steel mill, automobile assembly line etc.
Customized parts
| a.Limit switch |
| b.Dead man controller |
| c.Bumper or buffer |

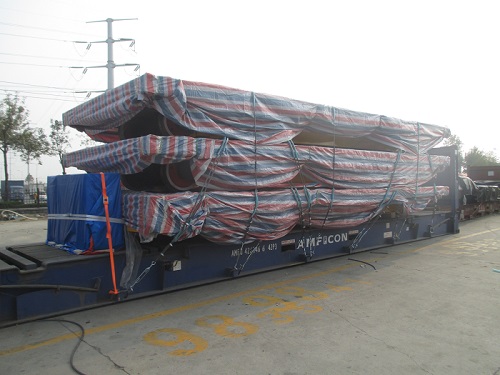

Exported transportation guide
Powered transfer trolley exported to Romania and Mexico.
How to choose the suitable transfer trolley?
Need to provide informaiton when you need quotation
These information is very important for price, if you proivde these details, you can get the accurate price.
Our company
Xinxiang Hundred Percent Electrical and Mechanical company is a collection of research, design, manufacture, installation and after-sales service of transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.
Our factory gate workshop our team
Manufacturing process
CNC cutting machine is cutting steel plate and then the cut steel plate are welded together to form car frame.
Our ceriticate
Our client and exhibition
Our company attended 4th Eur-Aisa Exhibition in Urumqi.
Other related product:
Hydraulic dumping transfer car on rails
Steerable transfer car on cement floor for building material handling.
Power transfer car running on turntable
Welcome to contact us for more details.
