Battery Powered Rail Car Mover Manufacturer For Steel Plant Transfer
Automation and speediness of transportation in plant area is the pursuit of enterprises, which directly affects the production efficiency of enterprises. transportation can not only take a straight line as the transportation path. however, due to the influence of the transportation foundation, it is difficult for rail car mover to turn, but it is not impossible. turning steel platform transfer trolley is a kind of heavy transport tool which develops rapidly in recent years. because it can turn, it saves a lot of running space and reduces the running distance between two points.
Technique Parameter
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t |
| Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 |
| Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 |
| Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 |
| Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 |
| Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 |
managers must make operators abide by the safety rules and operation rules. operators must also be familiar with:
1. accessories attached to batetry powered rail car mover;
2. special accessories of electric transfer cart, such as accelerator pedal, brake pedal, direction switch, lifting switch and other common functions.
3. special situation and emergency handling operation.
the driving and operating personnel of electric transfer cart must continuously transport the no-load driving, control and steering operation practice until they master it.
according to all the requirements of accident prevention regulations, the electric transport cart must be assessed at least once a year by trained worker, including vision, body, etc., and only when it meets the assessment standards can it work safely.
All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.
battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply
Detailed Images of 50 Ton Battery Track Transfer Vehicle For Die Transportation
battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply
Our Company
Product Tags:
|
|

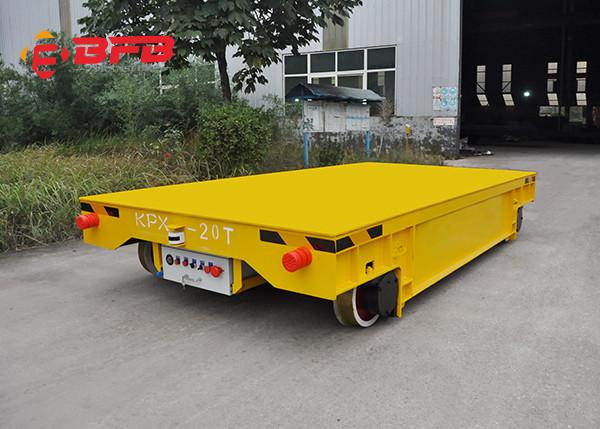

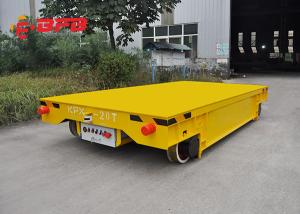

Steel Plant Rail Moving Battery Transfer Cart Remote Control Images
|
