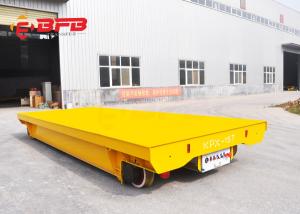

Rgv Steel Beam Material Transfer Carts For Workshop 40tn Transporter

Brand Name : BEFANBY

Model Number : KPX

Certification : CE,SGS,ISO9001

Place of Origin : Henan,China

MOQ : 1 set/sets

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1500 set/sets, per year

Delivery Time : 40-50 days as usual delivery,30-40days for urgent delivery

Packaging Details : The steel beam transfer trolley will be packed by the tarp, the parts will be shipped in the high quality wooden case.

Material : Q235

Color : Customized

Application : Industrial field, battery powered transfer

Running speed : 0-20m/min

Running distance : Unlimited

Warranty : 24 months

Port : Qingdao/Tianjin/Shanghai

Load capacity : 1-1000 Ton Payload

Operation type : Hand pendant + remote control

Power supply : Battery Powered

Advantage : More than 17 years' experience for Transporting Sections Of Vessel Between Buildings Of Shipyard

Option Power : cable power supply, trolly line, low voltage rail, diesel, etc.

Contact Now

Rgv Steel Beam Transfer Trolley For Workshop 40tn Transporter

Rgv steel beam transfer trolley is mainly applied for transporting concrete pole, hollow core and other concrete products.the steel beam transfer trolley has the advantages of safety and flexibility, no distance restriction, adjustable speed, smooth start, large starting moment, small impact on reducer, low voltage, long service life and so on. the track laying requirements are not high, and are suitable for occasions with low frequency and long distance transportation.

Rgv Steel Beam Material Transfer Carts For Workshop 40tn TransporterRgv Steel Beam Material Transfer Carts For Workshop 40tn Transporter

Operation Guidance

The employees who operate the electric transfer trolley need to be familiar with the structural performance of the equipment and can operate independently only after passing the test. when transporting heavy objects, they shall be placed stably and gently to ensure uniform weight distribution, and the equipment shall not be used beyond the specification or overload. when changing the running direction during use, the reverse start can be carried out only after the movement stops. the operator of rgv transfer trolley shall also inspect the equipment of electric flat car according to relevant inspection requirements. in addition, the lubrication shall be carried out in strict accordance with the lubrication chart of the electric transfer trolley, and it shall be carried out at a fixed time and at a fixed point. the operating staff shall carefully realize the "four skills" (being able to use, check, maintain and eliminate faults) and the "three virtues" (being able to use, manage and repair). after use, the load shall be unloaded, the power supply shall be cut off, and the cleaning shall be carried out according to the system. the operation of each part shall be checked regularly. if the temperature of motor and bearing is too high or there is abnormal sound, it is necessary to stop in time for inspection.

Technique Parameter
Model KPX-10t KPX-16t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load 10 16 25 30 40 50 63 80 100 150
Table size Length(L) 3600 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 2000 2000 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 500 550 600 600 650 650 700 800 900 1200
Wheel Base 2600 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 300 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 75 75 75 75
Running Speed 25 20 20 20 20 20 20 20 20 18
Motor Power 2 2.2 3.5 4 5 6.3 8 10 15 15
Battery Capacity 160 180 250 250 300 330 400 400 440 600
Battery Voltage 48 48 48 48 48 48 48 72 72 72
Max Wheel Load 42.6 64.5 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 4.2 5.5 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8

All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.

battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply

Rgv Steel Beam Material Transfer Carts For Workshop 40tn TransporterRgv Steel Beam Material Transfer Carts For Workshop 40tn Transporter

Rgv Steel Beam Material Transfer Carts For Workshop 40tn Transporter

Detailed Images of transfer trolley for workshop transporter

Rgv Steel Beam Material Transfer Carts For Workshop 40tn Transporter

Rgv Steel Beam Material Transfer Carts For Workshop 40tn Transporter

battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply
