Heavy Capacity Material Transfer Cars With Railway

Xinxiang Hundred Percent Electrical and Mechanical Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Heavy Capacity Material Transfer Cars With Railway

Brand Name : BEFANBY

Model Number : KPD-15T

Certification : CE,SGS,ISO9001

Place of Origin : Henan, China

MOQ : 1 set/sets

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000 set/sets per year

Delivery Time : 40-50 days as usual delivery,30-40days for urgent delivery

Packaging Details : The material transfer cat will be packed by the tarp, the parts will be shipped in the high quality wooden case.

Running speed : 0-20m/min

Warranty : 12 months

load capacity : 15 Tons

Application : Industrial field, factory,warehouse,plant

Port : Qingdao/Tianjin/Shanghai

Color : Customized

Power supply : Low voltage rail power

Operation type : Hand pendent + remote control

Contact Now

Heavy Capacity Material Transfer Cars With Railway

Product Description

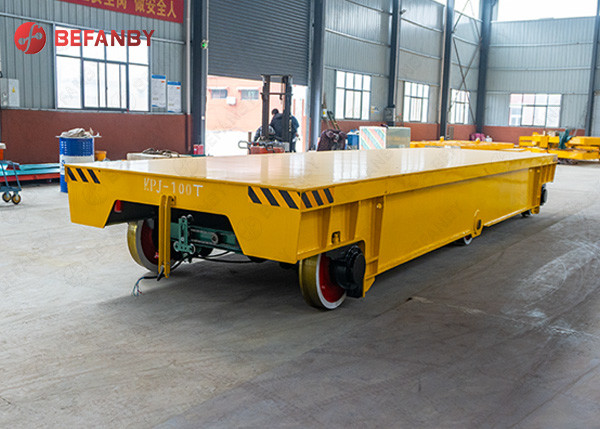

The rail electric transfer cart is a heavy-duty transportation equipment with simple structure, unlimited use time and high frequency of use. It uses sturdy and durable high-strength cast steel wheels to provide strong support for the transportation of heavy goods. Whether it is material transportation on factory production lines or cargo loading and unloading at ports, rail electric transfer carts are capable of various heavy-duty tasks.

First of all, the rail electric transfer cart has a simple structure and is easy to operate. It consists of a car body, wheels, electric motors and control systems. The car body is made of strong and durable steel to ensure its stability and load-bearing capacity. The wheels are made of rigid cast steel material, which has excellent wear resistance and pressure resistance and can be used in various harsh environments. At the same time, the electric motor drive system enables the cart to drive smoothly without excessive human input.

Secondly, unrestricted use time is a major feature of rail electric transfer carts. It uses a battery-powered system and can work continuously for dozens of hours when the battery is fully charged. Moreover, the charging time of the battery is short and it only takes a few hours to restore the charging state, without wasting downtime.

In addition, rail electric transfer carts are used frequently. It is suitable for various industrial fields such as logistics, manufacturing, construction sites, etc. In the logistics industry, rail electric transfer carts can replace traditional forklifts and can quickly and safely complete the loading and unloading of goods. It is believed that in the future, with the advancement of technology, rail electric transfer carts will be more widely used in various industries.

Heavy Capacity Material Transfer Cars With RailwayHeavy Capacity Material Transfer Cars With Railway

Product Details

Heavy Capacity Material Transfer Cars With Railway

Product Parameter

Model KPD-2T KPD-5T KPD-10T KPD-16T KPD-20T KPD-25T KPD-30T KPD-40T KPD-50T KPD-63T
Rated load(t) 2 5 10 16 20 25 30 40 50 63
Table Size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500
Heigth(H) 450 450 500 500 550 600 600 650 650 750
Wheel Base(mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300
Rai lnner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435
Wheel Dia.(mm) Φ270 Φ300 Φ300 Φ350 Φ350 Φ400 Φ400 Φ500 Φ500 Φ600
Wheel Quantity(pcs) 4 4 4 4 4 4 4 4 4 4
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 50
Running Speed(mm) 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20
Motor Power(kw) 1 1.2 1.6 2 2.2 3 3.5 4 5 6.3
Transformer 3 5 5 6.8 6.8 6.8 10 10 10 20
Transformer Quantity() 1 1 1 1 1 1 1 1 1 1
Running distance 80 80 80 80 80 80 80 60 50 50
Max Wheel load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4
Reference Wight(t) 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8
Recommend Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50
