Excellent Craftsmanship Machinery Plant Coil Battery Transfer Cart On Rail

Product Categories
Xinxiang Hundred Percent Electrical and Mechanical Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Excellent Craftsmanship Machinery Plant Coil Battery Transfer Cart On Rail

Brand Name : BEFANBY

Model Number : KPX

Certification : CE,SGS,ISO9001

Place of Origin : Henan,China

MOQ : 1 set/sets

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1500 set/sets, per year

Delivery Time : 40-50 days as usual delivery,30-40days for urgent delivery

Packaging Details : The motorized slab trolley will be packed by the tarp, the parts will be shipped in the high quality wooden case.

Material : Q235

Color : Customized

Application : Industrial field,motorized slab transfer

Running speed : 0-20m/min

Running distance : 60m, customized on demand

Warranty : 24 months

Port : Qingdao/Tianjin/Shanghai

Load capacity : 1-1000 Ton Payload

Power supply : Battery Powered

Operation type : Hand pendant + remote control

Advantage : More than 19 years' experience for motorized slab transfer

Option Power : cable power supply, trolly line, low voltage rail, diesel, etc.

Contact Now

Processing Line Hydraulic Motorized Slab Trolley On Rails

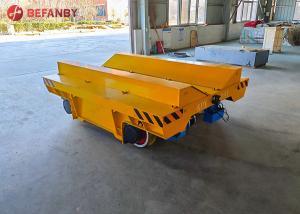

The battery rail transfer cart with coil rack is a special equipment designed for the transportation of coil materials (such as steel coils, aluminum coils, copper coils, etc.). It can effectively prevent the falling of materials during transportation.
The cart is powered by batteries, free from the constraints of external cables, flexible in operation, strong in endurance, and suitable for stable transportation between long distances and multiple stations.
The cart body is equipped with a customized coil rack structure, which is professionally designed according to the diameter and weight of the coil to ensure the stability and safety of the coil during transfer cart. Some models can also be equipped with adjustable coil racks to adapt to the loading and use of materials of different specifications. The vehicle runs along the track, is easy to operate, and can achieve precise docking of production lines or storage stations, effectively improving the handling efficiency of the workshop and the level of logistics automation.
The equipment is widely used in metallurgy, mechanical processing, warehousing and logistics and other industries, and is an ideal solution for the transfer of coil materials.

Technical Parameter

1. Model: KPX

2. Capacity: 10mt

3. Table Size: 3500*1800*600mm

4. Power: Battery Powered

5. Running Speed: 0-20m/min

6. Operation: Hand Pendant + Remote Control

Excellent Craftsmanship Machinery Plant Coil Battery Transfer Cart On Rail

Customized Manufacturer
Model KPX-10t KPX-16t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load 10 16 25 30 40 50 63 80 100 150
Table size Length(L) 3600 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 2000 2000 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 500 550 600 600 650 650 700 800 900 1200
Wheel Base 2600 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 300 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 75 75 75 75
Running Speed 25 20 20 20 20 20 20 20 20 18
Motor Power 2 2.2 3.5 4 5 6.3 8 10 15 15
Battery Capacity 160 180 250 250 300 330 400 400 440 600
Battery Voltage 48 48 48 48 48 48 48 72 72 72
Max Wheel Load 42.6 64.5 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 4.2 5.5 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8

All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.
